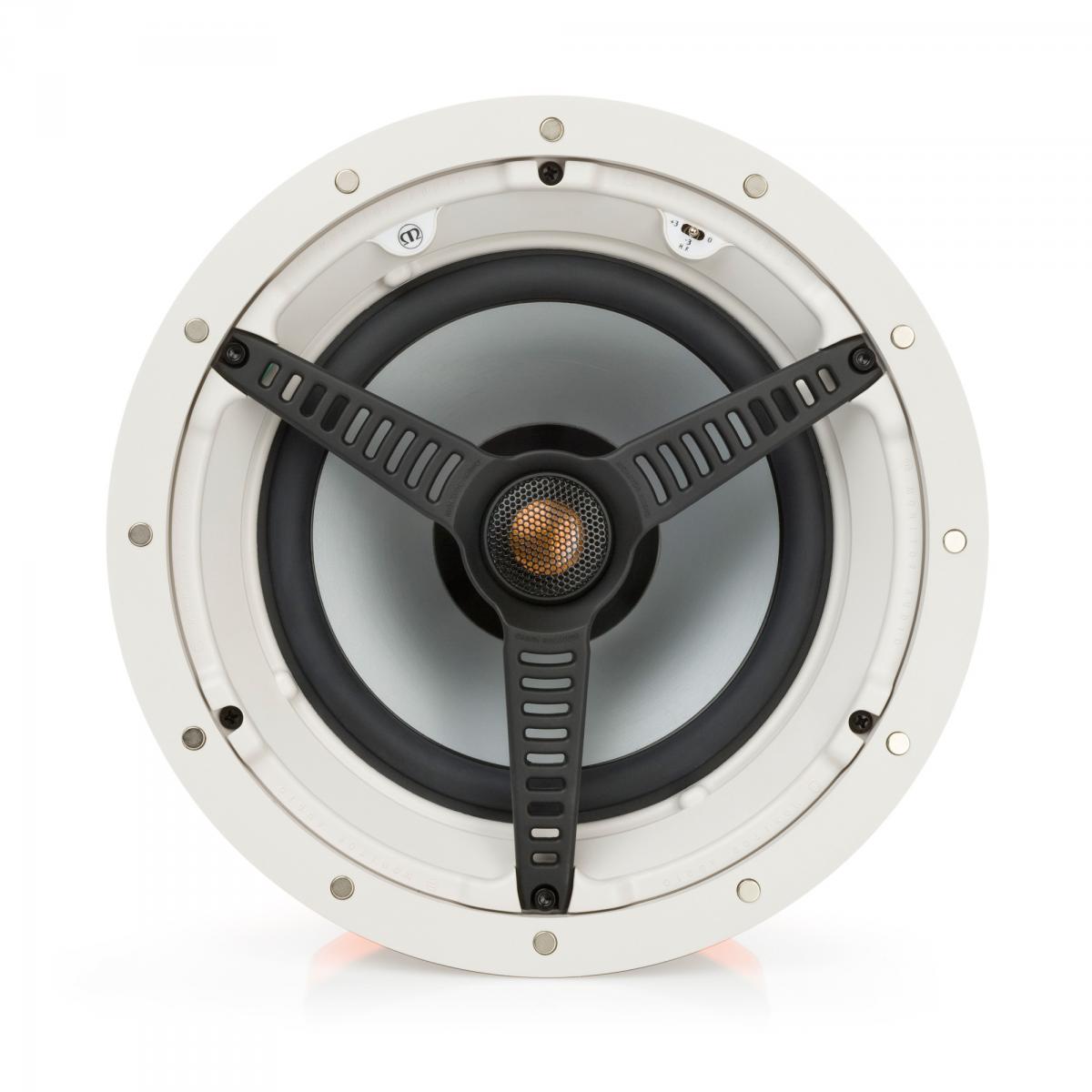

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM gold dome tweeter. 3-way design provides deeper bass, higher system output and greater power handling than the 200 Series 3-way models.
Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
True 3-way designs.
High overall efficiency.
High frequency level adjustment (+/- 3dB).
Boundary compensation control.
Audio match with CP range 200 & 300 models and Silver & Gold GX Series hi-fi speakers.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
All models are splash and humidity proof for installation in shower rooms or pool areas.
All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Specs
Frequency Response
45 Hz – 30 kHz
Impedance (Nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Power Handling (RMS)150 W
Recommended Amp Requirements
40 – 150 W
Drivers Unit Complement
8 C-CAM cone bass driver featuring RST pivoting IDC module housing:
4 C-CAM RST inverted mid range driver1 C-CAM gold dome tweeter
Adjustment Controls
HF Level Switch (+3dB / 0dB / -3dB)Boundary Compensation Switch
Overall Diameter:(including grille)
285 mm(11 1/4 inch)
Overall Depth:(including grille)
160 mm(6 5/16 inch)
Cut Out Diameter
247 mm(9 3/4 inch)
Mounting Depth
156 mm(6 1/8 inch)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
Pre-Construction Bracket
CB8 (Green)
Weight
3.64kg (8lb)
