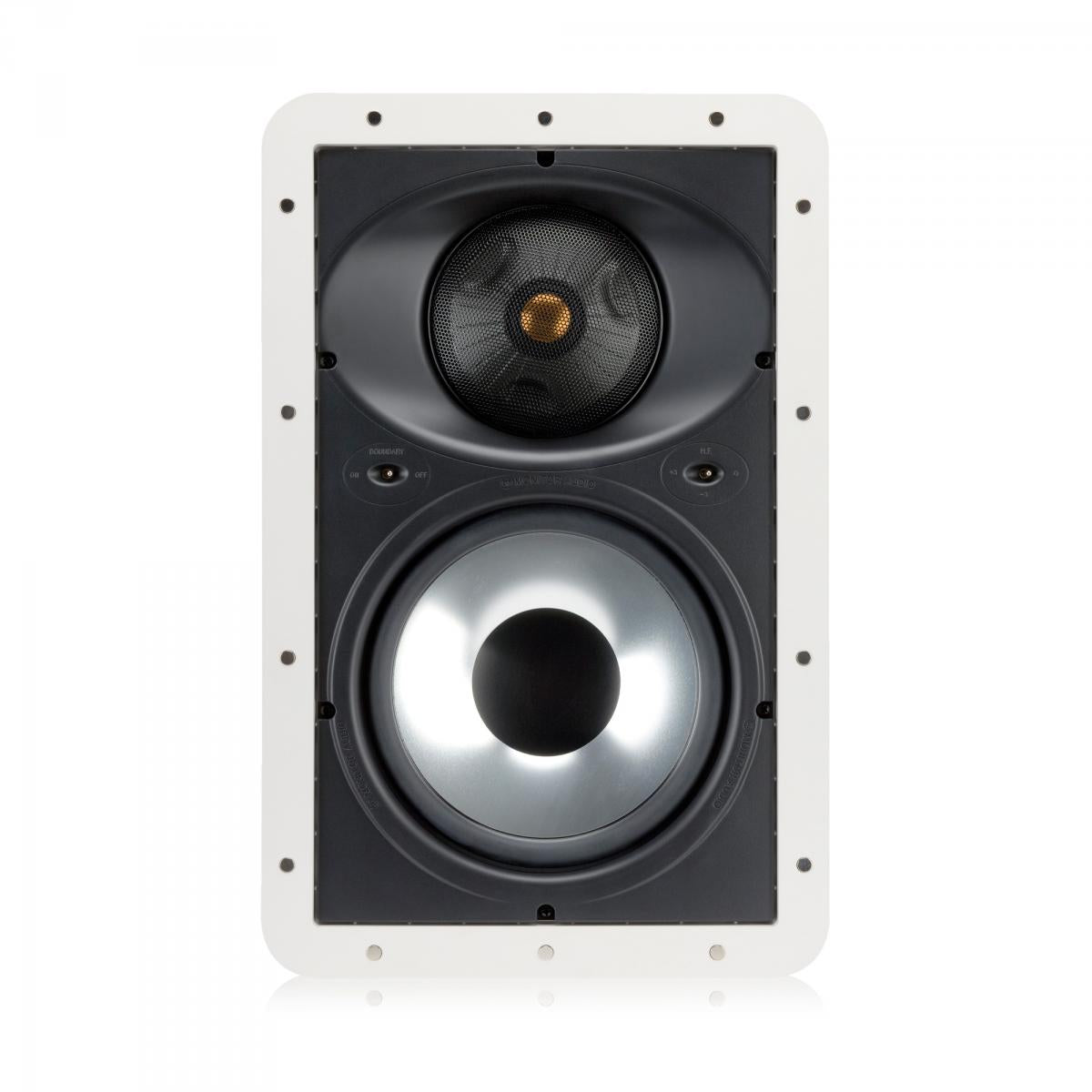

A 6.5-inch C-CAM bass driver and a more highly specified version of the C-CAM gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
Specs
Frequency Response
60 Hz – 30 kHz
Impedance (Nominal)
6 Ohms
Sensitivity (1W@1M)
88.5 dB
Maximum SPL
108 dBA
Power Handling (RMS)
75 W
Recommended Amp Requirements
20 – 75 W
Drivers Unit Complement
6.5 C-CAM cone bass driver1 C-CAM pivoting gold dome tweeter
Adjustment Controls
HF Level Switch (+3dB / 0dB / -3dB)Boundary Compensation Switch
Overall Diameter:(including grille)
250 mm(9 13/16 inch)
Overall Depth:(including grille)
118 mm(4 5/8 inch)
Cut Out Diameter
211 mm(8 1/4 inch)
Mounting Depth
114 mm(4 1/2 inch)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic
Pre-Construction Bracket
CB6 (Purple)
Weight
2.04kg (4lb 8oz)
