Product Information
Model: PM7000N/U1B | UPC: 699927141752

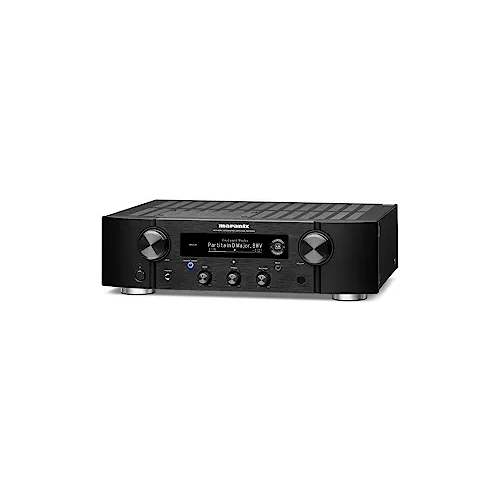

Discover the PM7000N, the first Marantz fully discrete, current feedback integrated Hi-Fi amplifier with HEOS Built-in technology. The ideal choice for audiophiles, the PM700N includes high-grade audio components, current feedback HDAMs, a toroidal transformer, and a high-speed instantaneous current power supply. Stream music wirelessly, or enjoy high-resolution digital audio files up to 24 bits and 192 kHz sampling.
Power to suit your audio preference:
2ch fully discrete current feedback integrated Hi-Fi amplifier; 60W per channel (8-ohm, 20Hz – 20kHz)
Wide range of connectivity
Four analog inputs, one analog output, one coaxial input, two optical digital inputs, and one USB-A for high-resolution audio files
Marantz proprietary HDAM-SA3 circuit
Wider dynamic range with lower distortion for the output stage
Flexibility for all configurations
Tone control to tune sound to your exact specifications and dedicated subwoofer output for evenly dispersed bass, no audible peaks or dips
Newly designed electric volume circuit
Use the latest volume control IC to realize better channel separation, dynamic range, and distortion-reduction
Play vinyl with exceptional clarity
Integrated phono input with a newly design FET input stage to improve signal purity and improve sound
Premium Marantz SPKT-1+ speaker terminals
Improved connection to speakers
Stream music from your favorite sources
Play songs from TuneIn, Internet Radio, Pandora, Spotify, SiriusXM, Amazon Prime Music, TIDAL and more via AirPlay 2, Bluetooth and the HEOS app (music streaming services may vary by region)
Speak your commands
Supports Amazon Alexa, Google Assistant and Apple Siri voice agents for seamless voice control
High-performance, high-resolution audio playback
Ability to decode high-resolution audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz — plus, DSD 2.8MHz and 5.6MHz tracks for high-resolution listening
Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support
Improved network stability even in Wi-Fi crowded homes
Works with your TV remote
Program the PM7000N to work with your TV remote and easily adjust volume up, volume down, mute and source selection
Specifications
Audio
- Channels: 2
- Current Feedback Topology
- Phono EQ: OP amp + FET input stage
- HDAMversion: HDAM-SA3, SA2
- Power Transformer: Toroidal
- Symetric PCB Layout
- Aluminum Extrusion Heat Sink
- Tone Control: Bass/Treble
- Source Direct
- Balance
- Pure modes: 3
Inputs
- Audio Inputs: 4
- Phono Input: MM
- Optical Input: 2
- Coaxial Input: 1
- USB-A: 1 (rear)
- Recorder Out
- Pre-out: Subwoofer
- Gold Plated Cinch
- Number of Terminals: 1 pair
- Remote Control Bus Terminal
- Headphone Out: 1 (Front)
Network
- HEOS Multi-Room and Streaming/Network Audio Streaming
- Lossy Formats: MP3 / WMA / AAC
- Lossless Formats: FLAC / ALAC / WAV / FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD Audio Streaming: Up to DSD5.6
- Gapless Playback: FLAC, WAV, ALAC, DSD
- AirPLay2 Audio Streaming
- Internet Radio: TuneIn
- Spotify Connect, Deezer, Tidal, Napster, Pandora, SiriusXM
- Supported Voice Agents: Alexa/Google Assistant/Siri
- Compatible with HEOS Remote App
- Ethernet Input: 1
- Wi-Fi: Dual antenna/dual band
- Bluetooth
Specifications
- Power Output (8 ohm): 60W
- Power Output (4 ohm): 80W
- Frequency Response: 5 Hz – 100 kHz +/- 3dB
- Total Harmonic Distortion (8 ohm, 20 Hz – 20 kHz): 0.02%
- Damping Factor (8 ohm, 20 Hz – 20 kHz): 100 and over
- Input Sensitivity (MM): 2.0mV / 47 kOhms
- Signal to Noise Ratio (MM): 87 dB (5 mV input, 1 W output)
- Input Sensitivity: 220 mY/18 kOhms
- Signal to Noise Ratio: 115 dB (2 V input, rated output)
General
- Power Consumption: 220 W
- Standby Consumption: 0.4 W
- Detachable Power Cable
- Dimensions (W x H x D): 17.3″ x 4.9″ x 14.9″
- Weight: 23.8 lbs
What’s In The Box
- PM7000N Integrated Stereo Amplifier
- Remote Control
