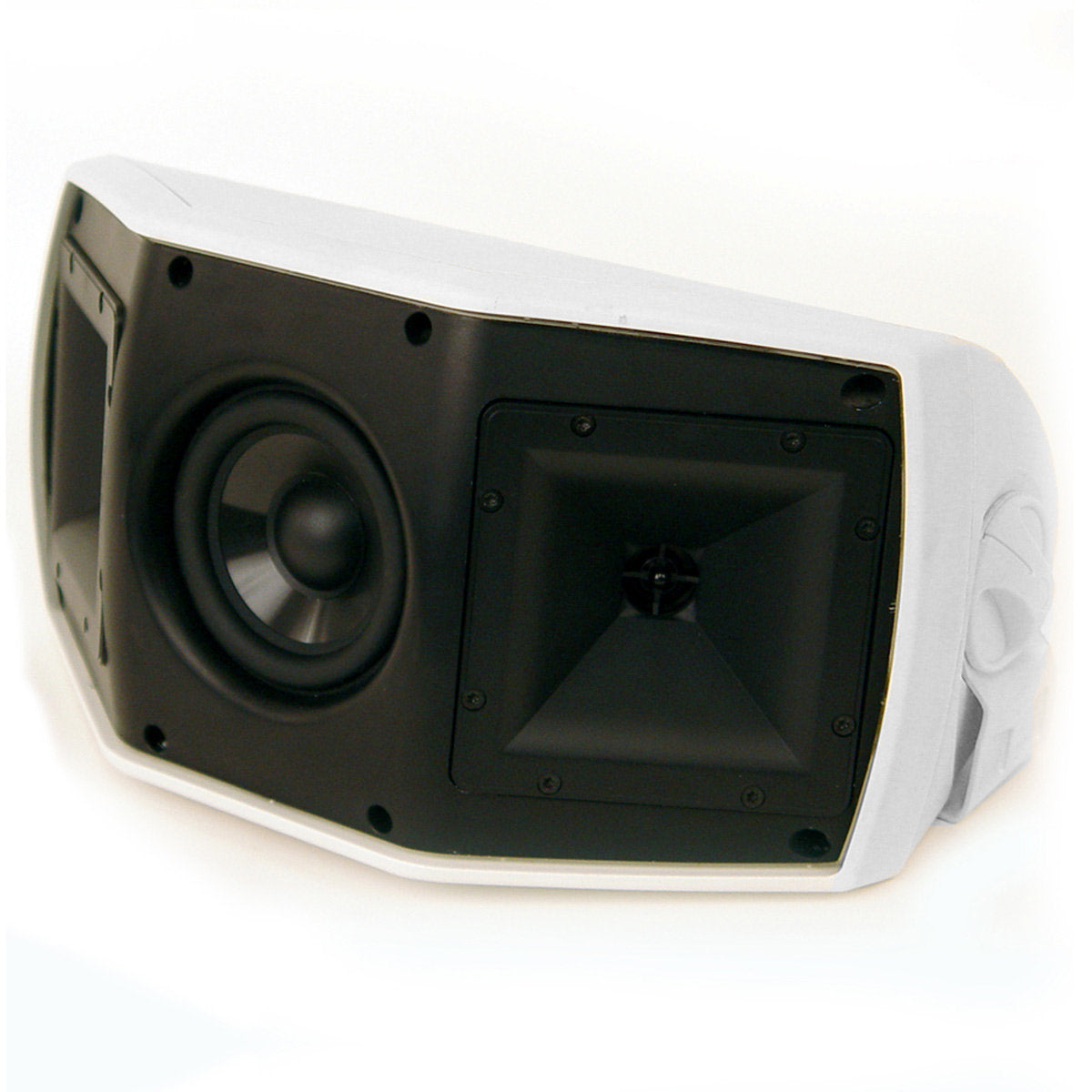

Klipsch RSM-525 Indoor/Outdoor Surface Mount Speakers with 5.25″ Woofer – Pair (White)

Product Information

Model: 1072014 | UPC: 743878057799

More Bass, Less Space with The All-New Tractrix® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, they’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 Rated for Residential Environments

Perfect for indoor and outdoor residential installation, the Klipsch RSM-525 is IPX6 Rated. You will rest easy knowing your new speakers will be water-resistant and rainproof for the most challenging residential environments.

Set Screws On Grille

The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1” Titanium Compression Driver for Effortless, High-Clarity Detail

Klipsch outperforms the competition with their all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using their patented mumps technology, the RSM-525 gives any space extra-wide coverage while providing even and consistent energy for your project.

Dual 5-Way Binding Post For Versatile Installation

The RSM-525 employs dual 5-way binding posts for versatile connection.

Specifications

• Frequency Response: 58Hz-20kHz +/- 4dB, 48Hz -10dB
• Power Handling: 65 watts (16.7V) 55Hz-10kHz (260 watts peak)
• Calc. Max. Cont. Output: 104dB
• Sensitivity: 89dB
• Coverage: 100° +/- 20° 1kHz-20kHz
• Directivity Index: 7dB +/- 1.5dB 1kHz-20kHz
• Nominal Impedance: 8 ohms 4.3 ohms at 175Hz minimum
• Acoustic Crossover: 2kHz
• Transducers
  • 5.25” woofer
  • 1” titanium compression driver, on a K-1200M horn/tweeter bridge
• Enclosure Material: All Weather ABS Plastic, Paintable
• IP Rating: IPX6
• Enclosure Tuning: Vented via 3 folded Tractrix ports
• Input Connectors: Dual 5-way binding post
• Dimensions: 12.13” x 9.5” x 6.5”
• Dimensions (With Bracket): 12.13” x 9.5” x 8.38”
• Weight: 7.75 lbs

What’s In The Box

• RSM-525 Indoor/Outdoor Surface Mount Speakers with 5.25″ Woofer – Pair (Black)
• Manual
