Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, Stainless Steel
The sculpted lines of Alta bring an exciting, new choice to typical range hood shapes. Sophisticated curves and hidden controls offer a beautiful alternative to traditional designs.
Broan(R) Elite 30-Inch Convertible Under-Cabinet Range Hood, Stainless Steel
The sculpted lines of Alta bring an exciting, new choice to typical range hood shapes. Sophisticated curves and hidden controls offer a beautiful alternative to traditional designs.
Specifications
| Filter Type | Micro Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Stainless Steel |
| Rated Amps | 1.4 |
| Product Depth | 22 |
| Product Height | 5″ |
| Product Width | 30″ |
| Built-In Timer | No |
| Capture Efficiency | 97.4 |
| CFM | 250 |
| Diameter | 7″ Round |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | MR16 or PAR16 |
| Manufacturer Warranty | 1 Year |
| Wattage | 168 |
Manuals & Guides
- Specification Sheet
- Installation Guide
- Range Hood Cord Kit Installation Guide
- ADA Wiring Instructions
- Range Hood Compatibility P2RW P3RW Wall Switch
Features
- Model replaced BQSJ130SS

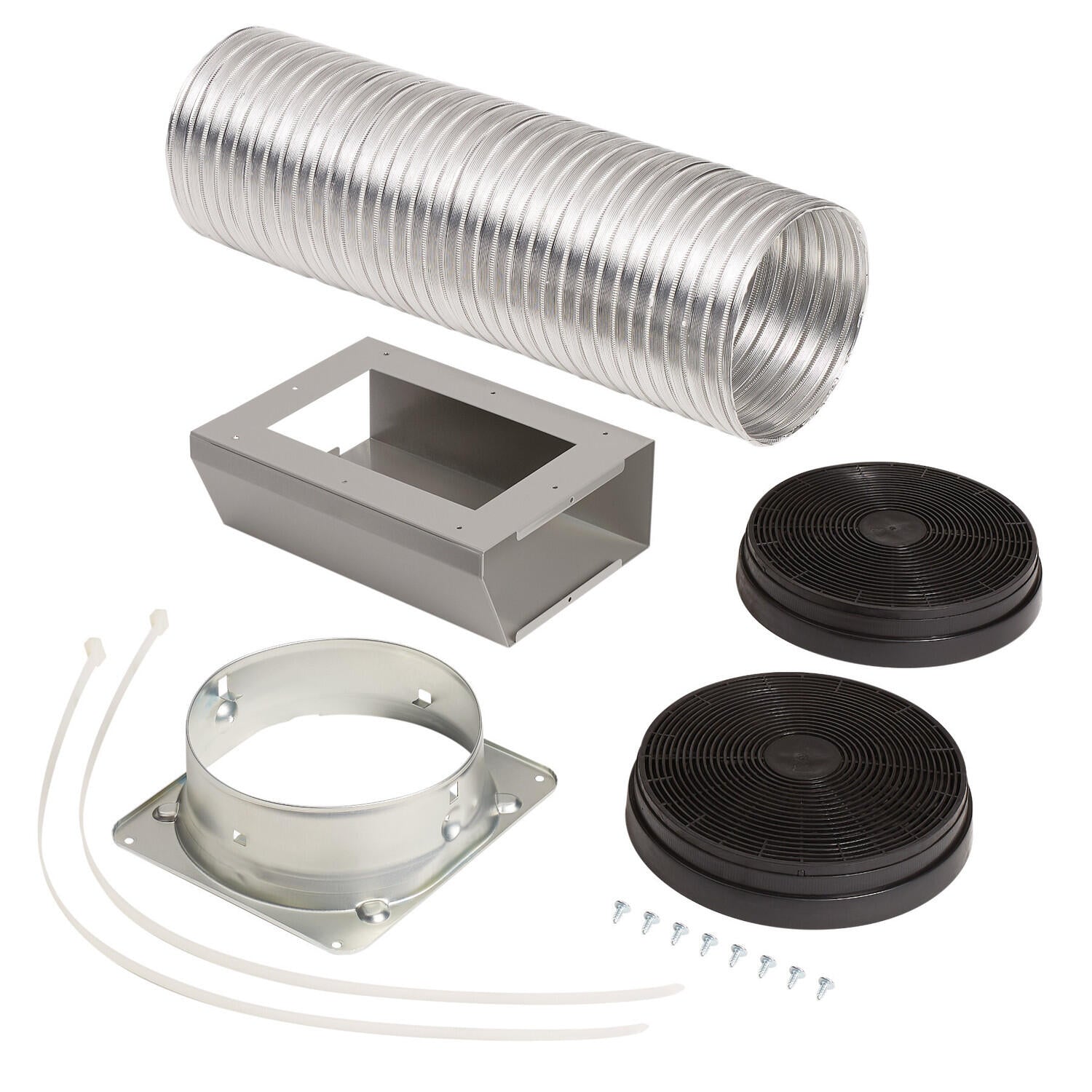

- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- The Captur system’s advanced blower/wheel design features a centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM
- Forward placement and smooth-flow blower wheel design ensure quiet, 1.5 sones operation at normal speed
- Hidden on/off rocker switches control blower speeds and light levels
- Dishwasher-safe, micro-mesh filters provide efficient grease removal
- EZ1 brackets enable single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination.
